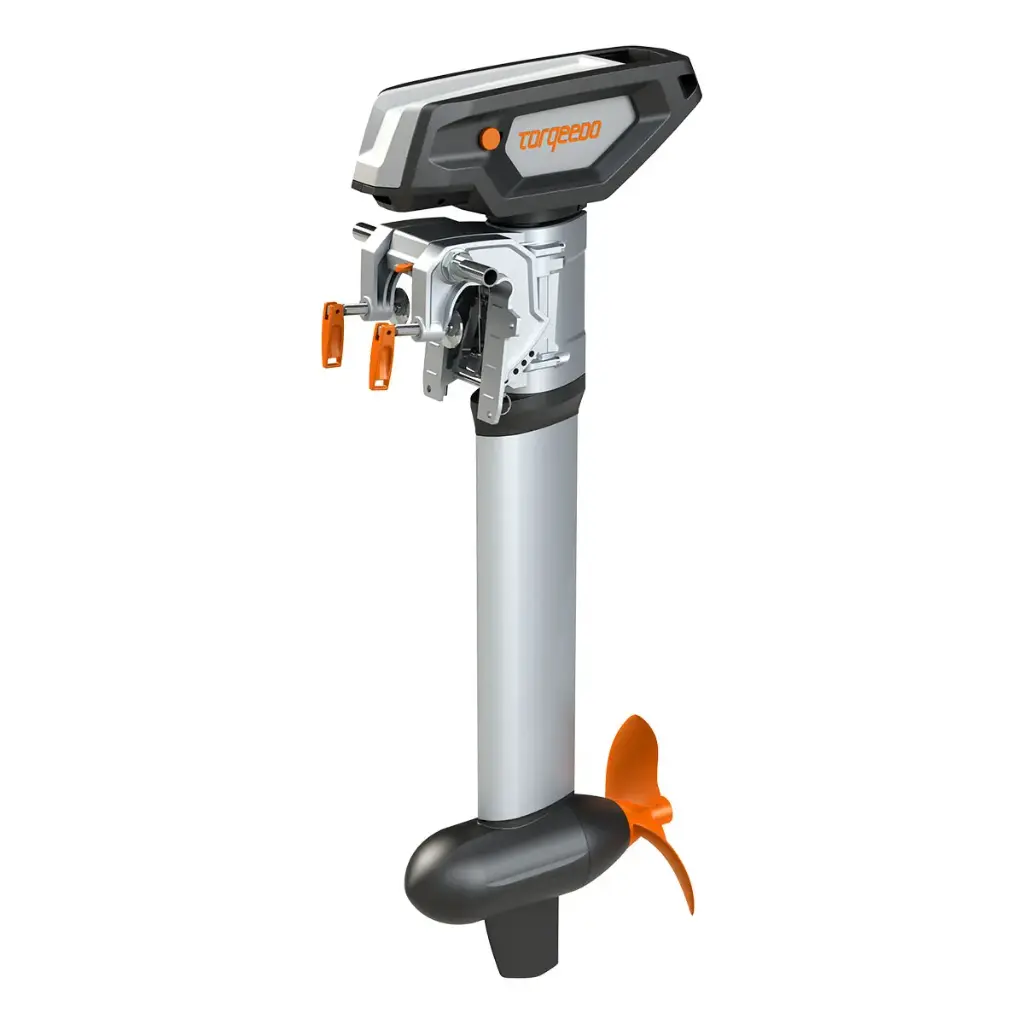

Cruise 3.0 R
- Improved robustness and improved corrosion protection
- 3,000 W input power, in terms of propulsion is comparable with a 6-hp petrol outboard
- Maximum efficiency outboard
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with on-board computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon with advanced helical gear design.
Cruise 3.0 is a 24-Volt, six horsepower-equivalent outboard perfect for displacement hulls up to 3 tons or sailboats up to 30 feet.
With a single Power 24-3500 lithium battery, this lightweight e-drive gives you over one hour of full-throttle runtime and runs all day at slower speeds.
Need more range or speed? You can add up to 8 Power 24-3500 batteries for more energy storage. Cruise 3.0 R models are best paired with remote throttle 1918-00 or your choice of upgrade aluminum throttles (sold separately).
Cruise 3.0 R – Benefits:
- High-efficiency outboard with 3,000 W input power, equivalent to a 6 HP petrol outboard
- Pair with Power 24-3500 for best performance and accurate range/runtime functionality
- R model includes remote steering link arm for use with industry standard steering systems
- Your choice of throttle: standard throttle 1918-00 or add a TorqLink throttle (gateway required)
- Rugged pylon with integral fin – extra protection when running aground
- Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
- Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
- Also compatible with third-party batteries (24-volt) but careful matching to motor power requirements is needed - Power 24-3500 battery is highly recommended
Technical Data Cruise
| Cruise 3.0 R |
|---|---|
| Input power in watts | 3000 |
| Propulsive power in watts | 1530 |
| Comparable petrol outboards (propulsive power) | 6 HP |
| Comparable petrol outboards (thrust) | 8 HP |
| Maximum overall efficiency in % | 51 |
| Static thrust in lbs* | 142 |
| Integrated battery | - |
| Nominal voltage | 24 |
| Final charging voltage | - |
| Total weight in kg | 18.9 (S) / 19.4 (L) |
| Motor weight without battery in kg | - |
| Weight of integrated battery | — |
| Shaft length in cm | 62.5 (S) / 75.5 (L) |
| Standard propeller v = speed in km/h at p = power in watts | Propeller B 12 x 10,5 WDR |
| Alternative propeller options | — |
| Propeller Guide | |
| Maximum propeller speed in rpm | 1100 |
| Control | Remote throttle |
| TorqLink | No |
| Steering | Provision to connect to standard remote steering; lockable |
| Tilting device | Manual with grounding protection |
| Tilt angle | 61,3° |
| Trim device | Manual, 4-step |
| Integrated on-board computer | Yes |
| Stepless forward/reverse drive | Yes |
* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.
- Impact-resistant aluminium integral fin
- Rugged: aluminium housing with shaft sealant rings on the inside
- Optimised propeller design: For greater thrust or more speed
- Available with short or long shaft – as you need
- Connection for standard remote steering
THE CRUISE FAMILY
Cruise 3.0 R
≡ 6 HP
Cruise 3.0 T
≡ 6 HP
Cruise 6.0 R TorqLink
≡ 9.9 HP
Cruise 6.0 T
≡ 9.9 HP
Cruise 10.0 T
≡ 20 HP
Cruise 12.0 R TorqLink
≡ 25 HP
